Worn Bottom Bracket Spindle: Diagnose & Replace (24mm/30mm)

You’ll notice worn spindle interfaces when your cranks wobble side to side or feel gritty while spinning, often paired with visible fluting or pitting on the 24mm or 30mm spindle. Check for play by gripping the arms and wiggling firmly. Remove cranks with the right tool-like a CCP-22 for square tapers or BBT-30.3 for Hollowtech II-and inspect spline teeth and taper surfaces closely; replace if diameter wear exceeds 0.1mm.

We are supported by our audience. When you purchase through links on our site, we may earn an affiliate commission, at no extra cost for you. Learn more. Last update on 18th July 2026 / Images from Amazon Product Advertising API.

Notable Insights

• Wiggle crank arms side to side to check for play, indicating worn spindle or bearing issues.
• Spin cranks slowly under lateral pressure to detect grinding, revealing spindle or bearing wear.
• Inspect spindle interface for pitting, grooves, or fluting; replace if diameter is reduced by more than 0.1mm.
• Remove crank arms using correct tools based on crank type to access and inspect the spindle interface.
• Install new bottom bracket with proper threading, anti-seize, and torque specs to ensure reliable spindle engagement.

Check for Bottom Bracket Spindle Wear

Spindle wear starts with subtle clues, but catching them early keeps your ride smooth and prevents costly damage down the line. You need to check for play by gripping the crank arms and wiggling side to side-if there’s movement, something’s loose near the bottom bracket shell. Spin the cranks slowly while pressing laterally; any grinding or roughness means spindle wear is likely. Look where the cranks attach: grooves, pitting, or fluting on the spindle signal trouble, especially on Shimano Hollowtech II or SRAM DUB systems. Use a micrometer to measure diameter-any drop over 0.1mm from 24mm or 30mm standards means replace it. Also, inspect spline teeth for cracks or deformation. Always compare surface finish and dimensions against manufacturer specs; deviations in hardness or coating mean the spindle won’t last.

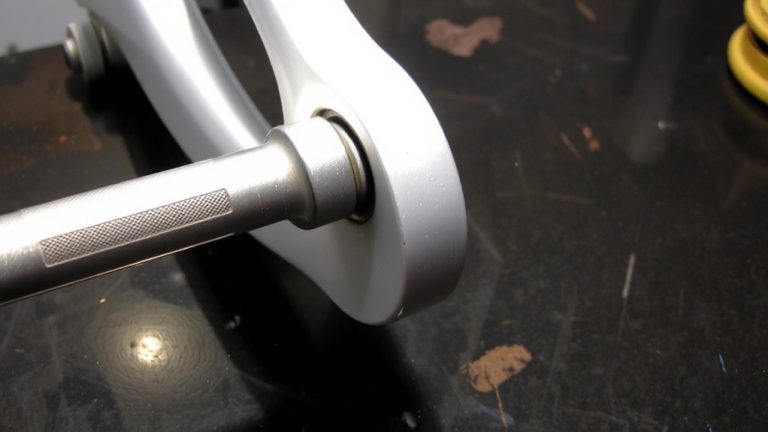

Remove Crank Arms to Access the Spindle

Now that you’ve identified wear on the spindle through play, grinding, or visible damage, it’s time to get inside the bottom bracket to confirm the issue and prepare for replacement. You’ll need to remove the crank arms to access the spindle, but the method depends on your crank type. For one-piece systems, remove the left pedal first (left-hand thread, so turn clockwise), then use a HCW-18 or pin spanner to loosen the non-drive side cone. Slide the entire crank and spindle out together. On Shimano Hollowtech II, loosen the 5mm pinch bolts, then use a BBT-30.3 to remove the preload cap and separate the crank arm. For square taper, remove the crank bolt and use a CCP-22 puller.

Take Out the Old Bottom Bracket

Once you’ve pulled the crank arms and cleared the spindle from the frame, you’re ready to extract the old bottom bracket, and the right tool makes all the difference in protecting your frame’s threads. To remove the crank safely, always start by loosening pinch bolts and taking off the left pedal. For one-piece cranks, use an HCW-18 pin spanner to turn the adjusting cone clockwise on the non-drive side before sliding the assembly out. With external cup systems like Shimano Hollowtech II, grab a BBT-9 to shift the non-drive cup counterclockwise-it’s standard threaded. The drive side, though, uses left-hand threading, so spin it clockwise to remove. Press-fit models, such as BB30, need the FIRST BB2430 tool, which grips inner bearing edges without marring the shell.

Inspect Spindle Interface and Bearing Cups

Look for signs of wear at the crank arm interface first-anything from pitting to cracks or noticeable deformation on square taper spindles or splined setups like Shimano 24mm and SRAM DUB means it’s time for a replacement. Check the spindle interface closely; even light gouging can compromise crank attachment and lead to creaking or slippage under load. Spin the bottom bracket bearings slowly by hand-grit or roughness suggests contamination or wear in the bearing cups. Feel for play by rocking the crank arm side to side; more than 0.1mm of movement points to loose cup-and-cone preload or failing cartridge bearings. Inspect both drive-side and non-drive-side bearing cups for scoring, corrosion, or improper seating, especially in BSA-threaded or press-fit systems. Misaligned or galled cups degrade performance and can damage the frame.

Install the New Bottom Bracket Correctly

When installing your new bottom bracket, start by threading both cups into the frame by hand to guarantee perfect alignment and avoid cross-threading, especially critical with BSA standards where the drive-side cup has left-hand threading and tightens clockwise. Apply anti-seize compound to the frame’s bottom bracket shell threads-this prevents corrosion and makes future removal easier, especially with steel cups in aluminum frames. For external systems like Shimano Hollowtech II, don’t forget to press the plastic dust sleeve into the right-side cup before installation. Once seated, use a torque wrench to tighten the drive-side cup to 35–50Nm, following specs. Bottom,Bracket alignment assures longevity. Install the new bottom bracket correctly by confirming both cups sit flush and fully seated-any gap causes creaks and premature wear. Double-check everything, because proper setup means smooth spinning, mile after mile.

Set Preload and Test Crank Smoothness

You’ve got the new bottom bracket snug in the frame, cups seated flush and secured with the right torque, so now it’s time to focus on getting that crankset spinning just right. To set preload on Shimano Hollowtech II, snug the preload cap first, then tighten the non-drive side pinch bolt to 12–14 Nm using a torque wrench-this prevents bearing damage. For SRAM DUB, rotate the preload collar until play disappears, then lock it with the pinch bolt at 6–7 Nm. Always spin the cranks by hand after reassembly; they should rotate freely for 5–7 full turns. Any roughness, clicking, or binding means preload’s off or bearings are contaminated. Using a torque wrench guarantees precision, avoiding crushed interfaces or premature wear. A smooth spin means you’re good to go-no creaks, no drag, just clean power transfer down the trail.

On a final note

You’ve got this: once you spot creaking or rough pedal feel, grab a crank puller and check the spindle interface. Most modern BBs use 24mm or 30mm spindles, and worn bearings often measure play over 0.5mm. Swap in a sealed cartridge or press-fit unit like the Shimano BB-RS500, align it square, and set preload with a 5mm Allen. Spin the cranks-they should glide, no resistance. Test ride on a bumpy trail; if it’s silent and smooth, you nailed it.
